Ariadne in VS Code ​

The VS Code extension opens *.saga.yaml files as diagrams, next to the C# that implements them. The file stays a normal text document, so save, undo, git and "Open with Text Editor" work as always. The extension also imports and generates C#, shows where a diagram and its code have drifted apart, exports, and draws sagas in the Markdown preview. Every command and setting is listed in the extension's README.

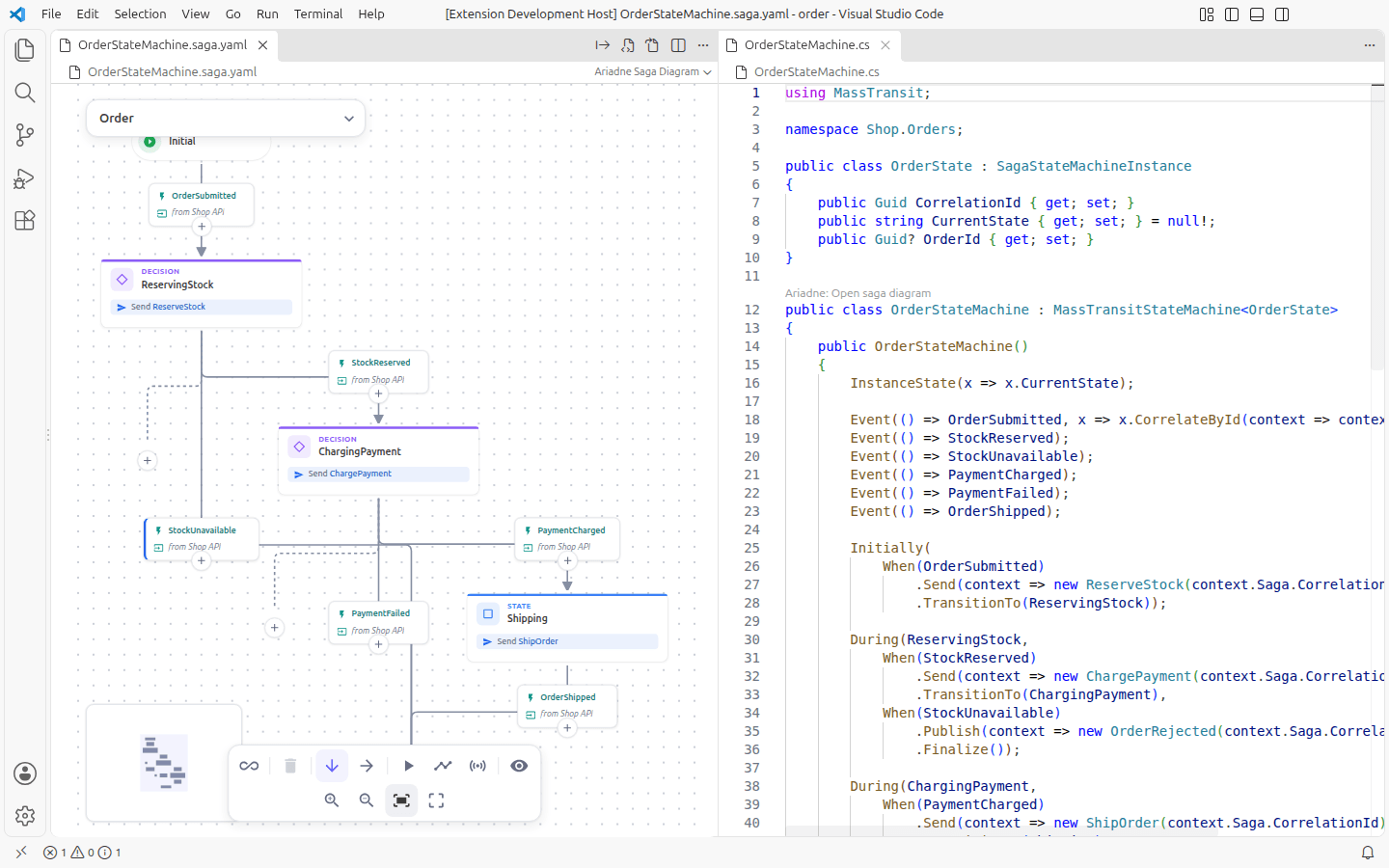

VS Code with an order saga open as a diagram on the left and the C# that implements it on the right; above the state machine class a CodeLens reads Open saga diagram

Install ​

The extension is not in a marketplace yet; every release of Ariadne carries it as a file.

  1. Open the latest release and download ariadne-vscode-<version>.vsix.
  2. Install it, either
    • in a terminal: code --install-extension ariadne-vscode-<version>.vsix, or
    • in VS Code: Extensions view → "…" menu → Install from VSIX… and pick the file.
  3. Open a folder with a *.saga.yaml file, or run Ariadne: New Saga Diagram from the Command Palette.

There are no automatic updates: to update, install the newer .vsix over the old one. To remove it, uninstall "Ariadne" in the Extensions view. For YAML completion and validation while you edit the text, also install the Red Hat YAML extension; Ariadne contributes the schema for it.

Work next to the code ​

When a diagram names its C# file (saga.source), saving either one compares them. A difference is a warning in the Problems panel on both files, and a quick fix on the C# or the diagram updates the diagram from the code or opens a diff. A diagram that cannot be read is listed there too, on its line.

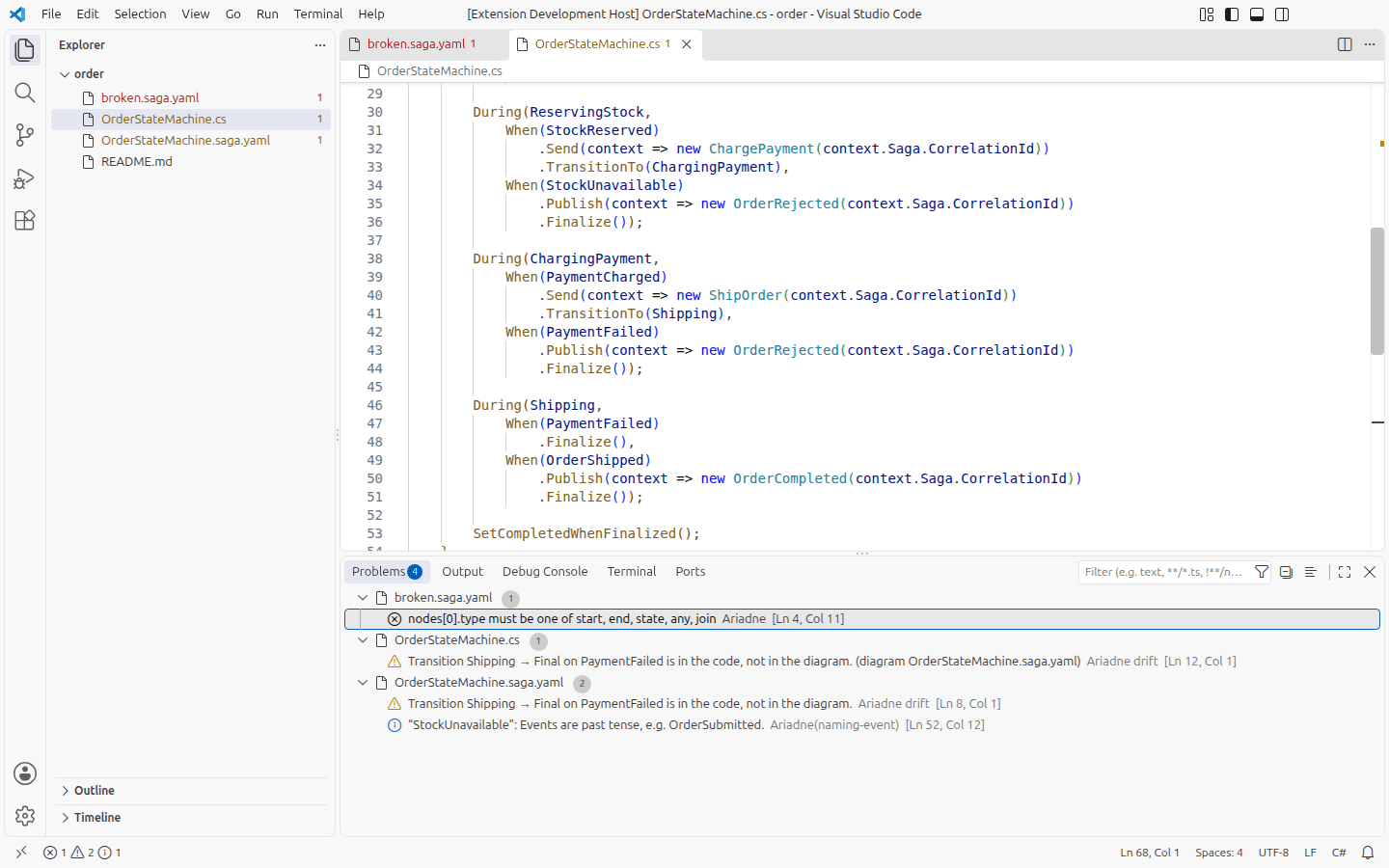

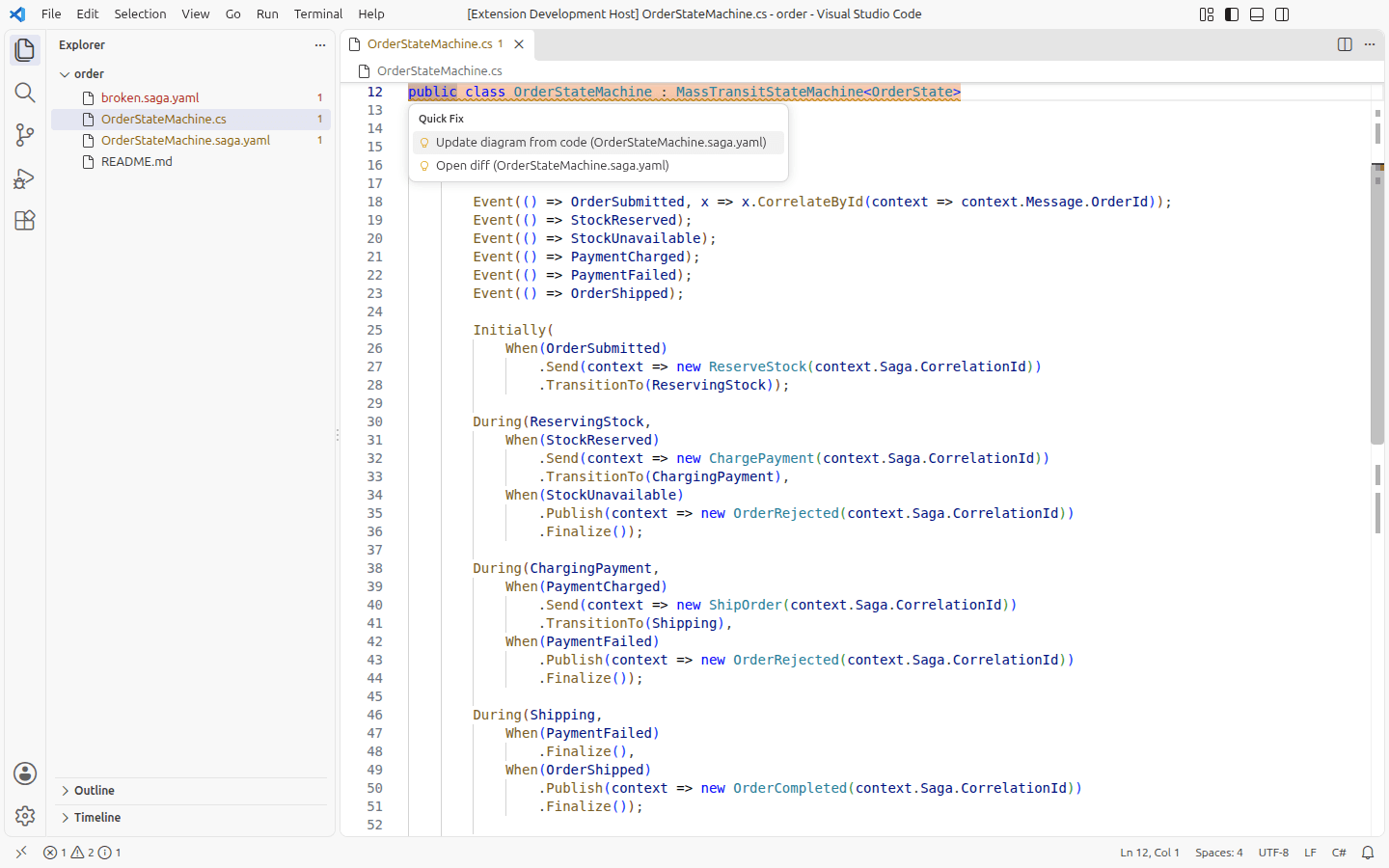

The Problems panel of VS Code listing an error in a diagram that cannot be read, and a warning on both the C# and the diagram that a transition from Shipping to the final state is in the code but not in the diagramThe Quick Fix menu on the state machine class in the C# file, offering Update diagram from code and Open diff

Ariadne: Export Diagram… asks for the format, then saves the file next to the diagram or copies the text.

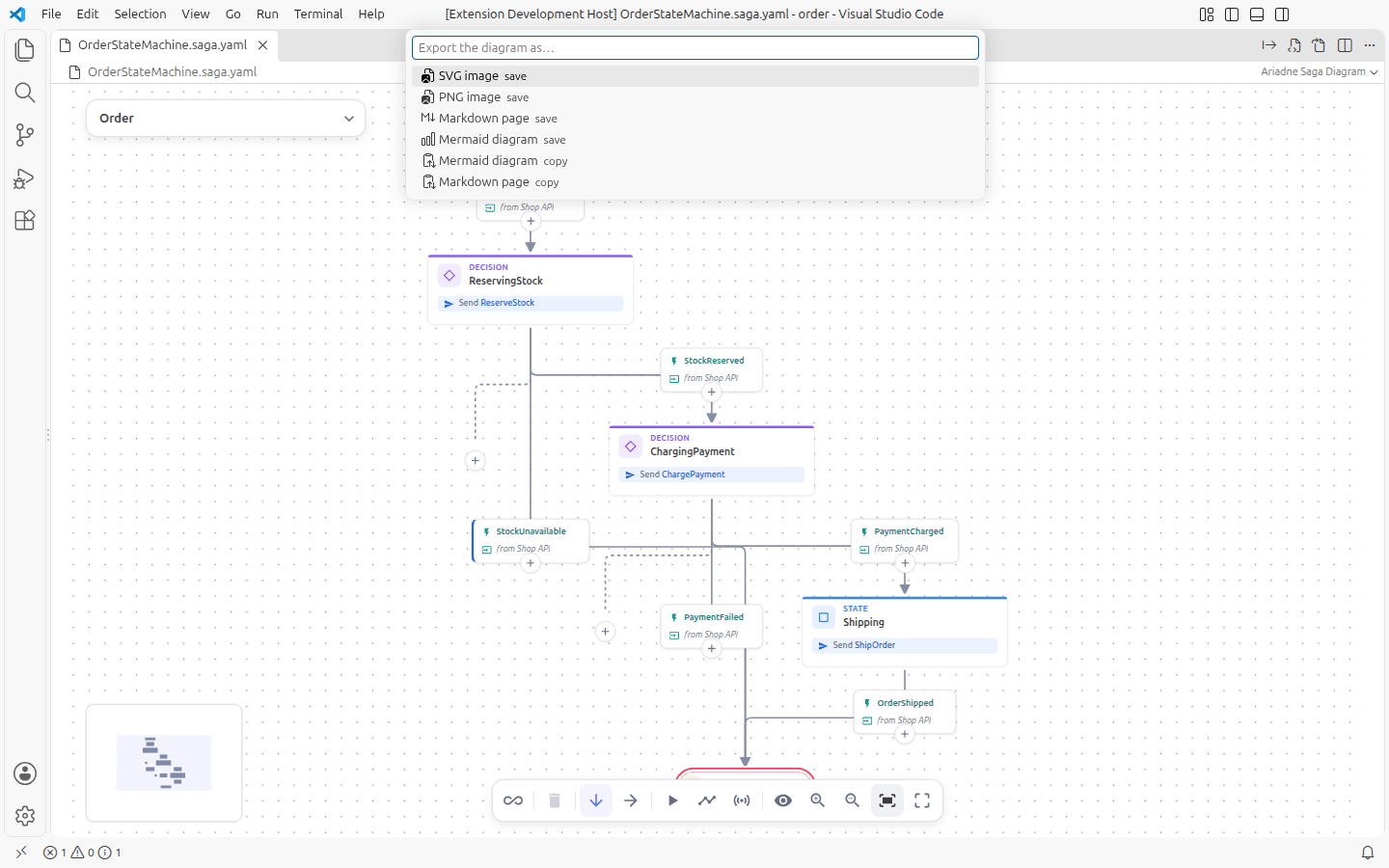

The diagram editor with the list of exports of Ariadne: Export Diagram open at the top: SVG image, PNG image, Markdown page and Mermaid diagram to save, and Mermaid diagram and Markdown page to copy

The Markdown preview draws a saga from a fenced block, or from a file, as an image of the diagram.

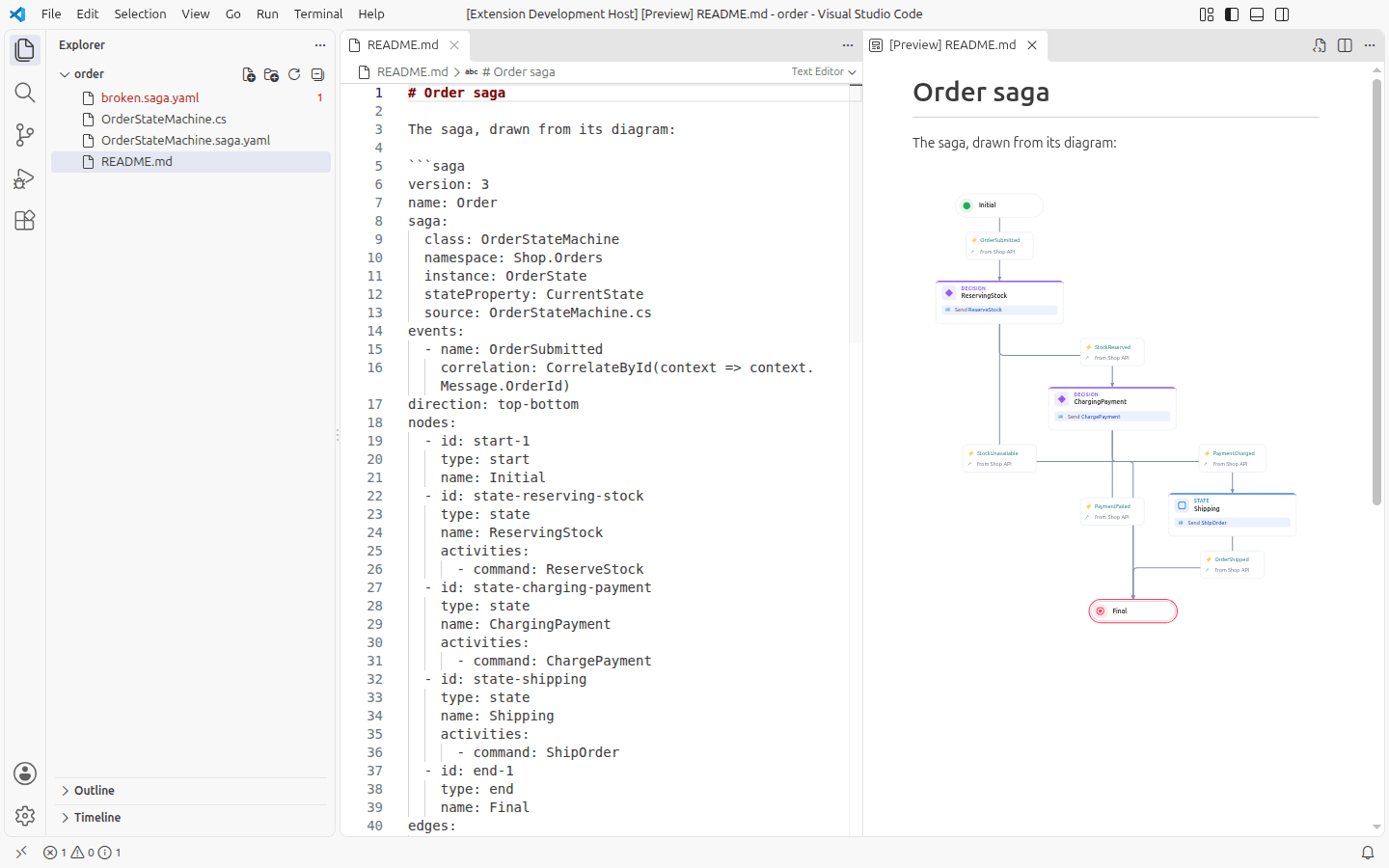

A Markdown file beside its preview: the fenced saga block in the text, and the order saga drawn as a diagram in the preview

Next ​

  • Import a state machine: a CodeLens above the class says Import as saga diagram (import and generate).
  • Model a saga: modelling.
  • Export: exports; in VS Code use Ariadne: Export Diagram….
