Modelling sagas

A diagram is a saga state machine, the way MassTransit writes it. States do things; transitions react to events.

In the diagram	In MassTransit
Initial state (green), final state (red)	Initial, Final
State	State
Transition with an event	During(State, When(Event).TransitionTo(Next))
Activities of a state	WhenEnter(State, b => b.Send(...).Publish(...))
Any state	DuringAny(When(Event)...)
Ignored events of a state	During(State, Ignore(Event))
Requests and timeouts of a state	Request and Schedule
Join	CompositeEvent
Compensation	the undo action for the work that led to the state

View mode: the eye button in the toolbar hides the "+" buttons and the dotted lines that lead to them, to read a diagram or take a screenshot. Nothing else changes (you can still select, use the inspector and the keyboard). It lasts until you switch it off or close the editor: the editor always opens in edit mode. Exports never contain the "+" buttons.

Adding a state: the "+" after a state (or on a transition) opens a popover for a new state, with a switch for a join or a final state. It asks for the event of the new transition (with the suggestions of the inspector's Event field) and the name of the new state. The event field has the focus; Enter adds everything as one undo step. Esc, or leaving the fields empty, adds the state with the default name and no event. "To a new state" and "To a final state" in the inspector ask the same way. On a transition A → B the event you give belongs to the transition from the new state to B; the one into it keeps its own.

From the keyboard: with a state selected, N opens the same popover for a following state, F for a final state and C connects to an existing state; with a transition selected, E edits its event (all in Keyboard shortcuts).

Editing in place: double-click a state, or select it and press F2, to turn its name into a text field; a transition's event works the same way, on its label. Enter or leaving the field commits as one undo step, Esc cancels, and an empty state name puts the old one back. Editing is not available while walking through the saga or viewing a path.

A transition without an event shows a faint "+ event" chip where its label would be; click it, or select the transition and press F2, to type the event. The chip is not shown in view mode, the walkthrough or the path view, nor in the exports and the viewer, but its room is reserved, so adding the event does not move the diagram.

States

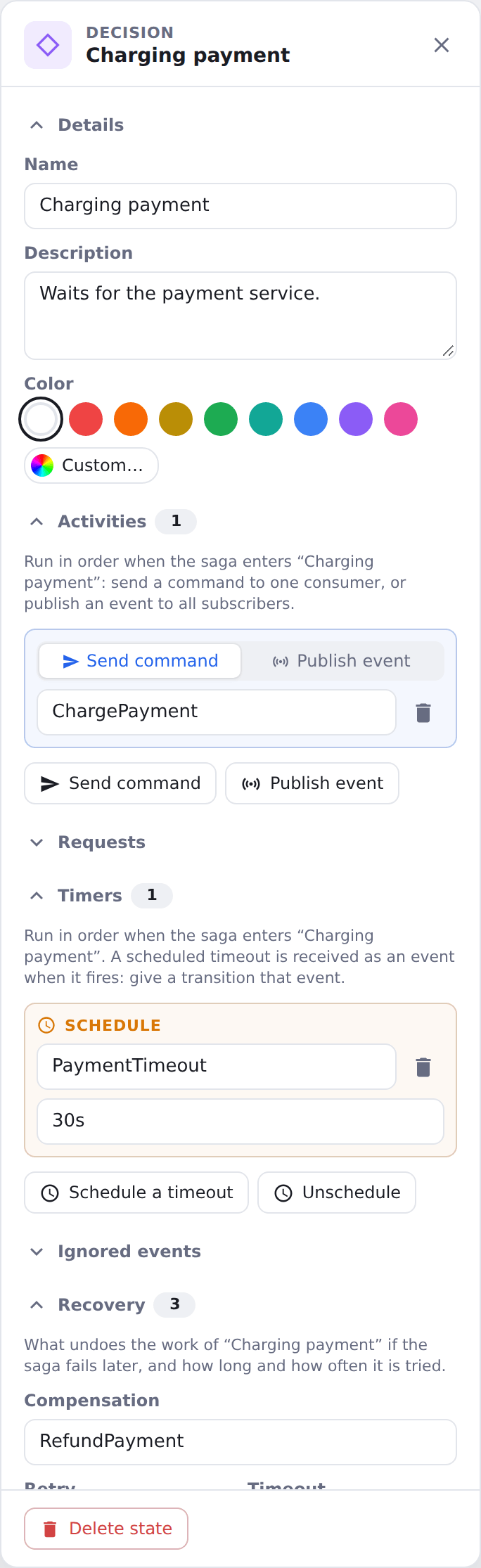

A state has a name, an optional description and colour, and optionally:

• Activities, in order: Send command (to exactly one consumer, named in the imperative: ChargePayment) or Publish event (to any subscribers, named in the past tense: OrderAccepted). The inspector hints when a name doesn't follow that convention.

• Requests (ValidateAddress): the reply arrives as ValidateAddress.Completed, .Faulted or .TimeoutExpired; draw a transition for each outcome you handle, or let "Add transitions for its outcomes" add them.

• Routing slips (Provision): a MassTransit Courier itinerary the state starts when it is entered, its activities in order. Mark an activity compensates when Courier can undo it; on a fault the inspector shows the order they are undone in (last first). The slip ends as Provision.Completed or Provision.Faulted; draw a transition from the same state for each outcome you handle, or let "Add transitions for its outcomes" add them. A state waits for the outcomes of one slip only: C# cannot tell two apart.

• Timeouts: schedule one when the state is entered (PaymentTimeout, 30s) or cancel it. A transition on the timeout's name is the timeout path.

  For a request, a scheduled timeout and a routing slip alike, "Add transitions for its outcomes" in the inspector adds one transition to a new state for each outcome the state does not react to yet, with the event filled in, as one undo step. It is not offered when none is missing.

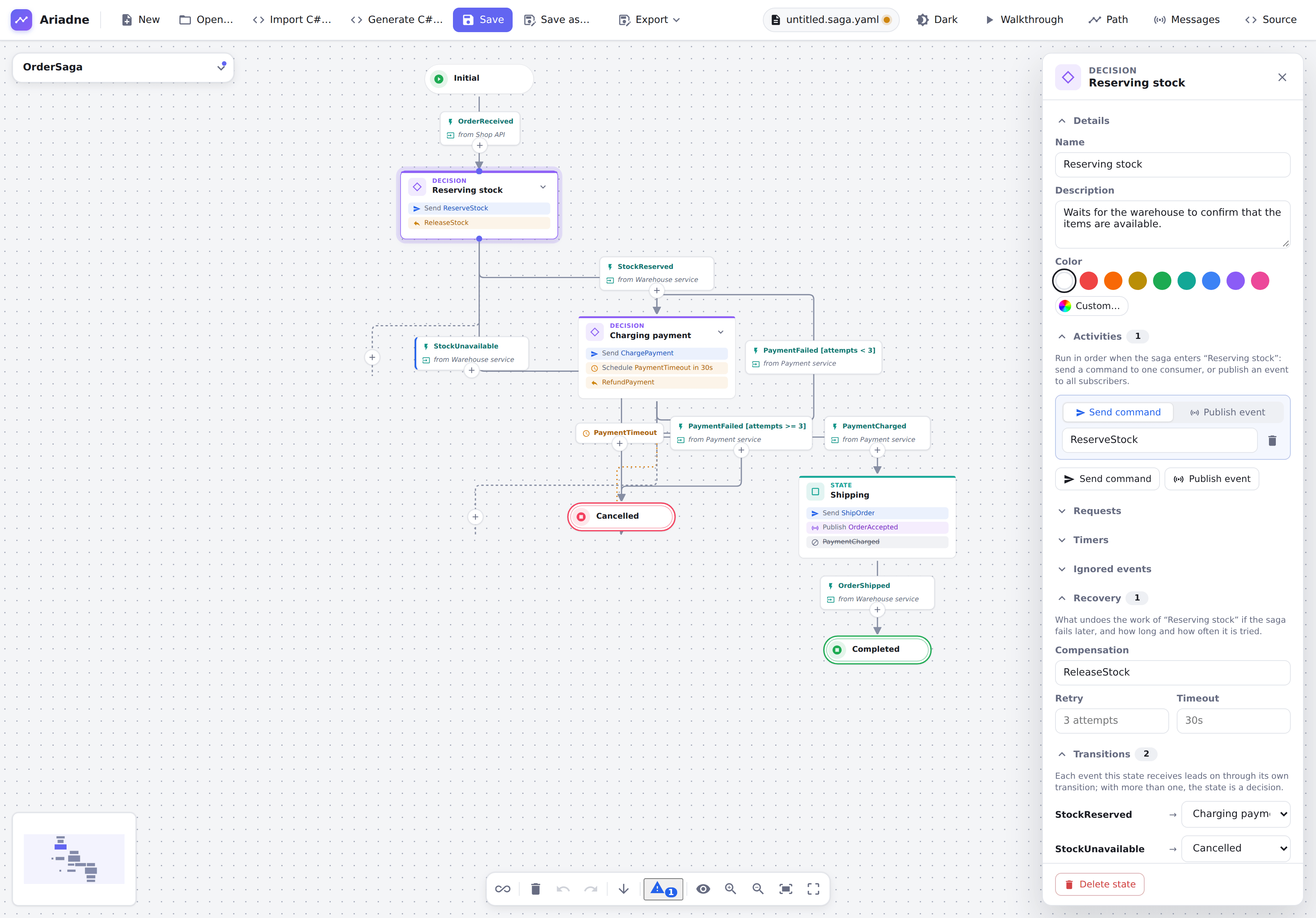

• Ignored events, retry and timeout notes, and a compensation (name and description).

Only plain states can have these; the initial and final states cannot.

The inspector keeps a state short: Details, Activities and Transitions are always shown; requests, routing slips, timers, ignored events and recovery appear when the state has entries. Add behavior…, below the Transitions, lists the hidden ones; picking one shows its section with a new entry focused. Removing the last entry takes the section away again.

Transitions

A transition says: while the saga is in the source state, this event moves it to the target. Several transitions from one state make a decision. Give transitions of the same event different guards (amount > 100) to branch on a condition.

The Transitions list of a state shows each outgoing transition with an editable event (with the same suggestions as the transition's own Event field) and its target; to give the branches of a decision their events, there is no need to select each transition in turn. An event that would duplicate another transition of the same states is refused and the old one put back.

The Event field suggests, first, what the source state makes possible (the outcomes of its requests and routing slips, its scheduled timeouts), then the same for the other states, the events the saga publishes, the events of other transitions and the events known from code (a C# import). An event another transition leaving the same state already reacts to is left out.

A transition back to the same state is a loop (a retry). A compensation transition is drawn differently and is not laid out; use it for the path back after a failure.

Events: internal and external

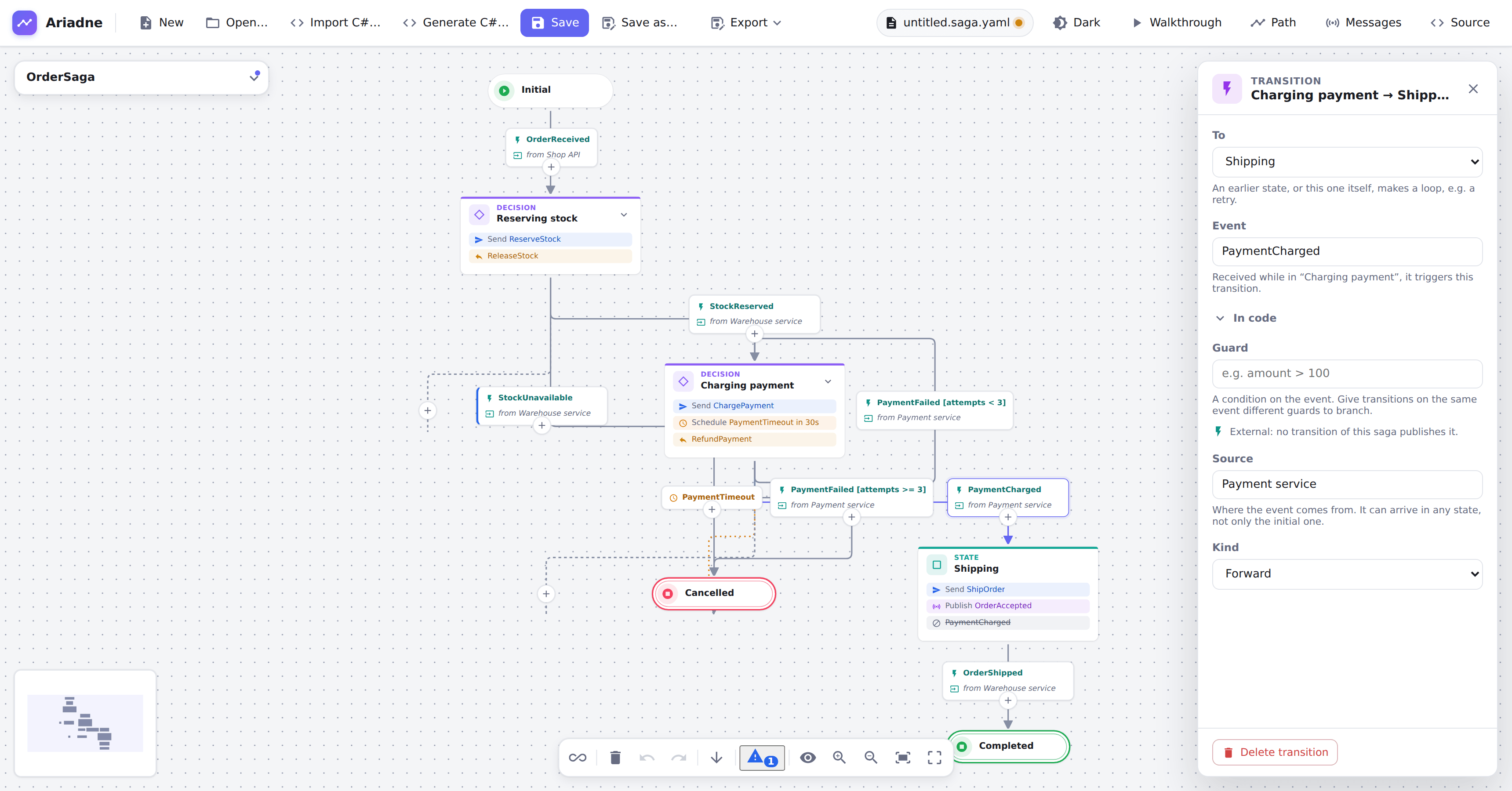

An event is internal when some state publishes it, and external otherwise. Ariadne works that out; you only set the source of an external event (Payment service) so the diagram says where it comes from. External events can arrive in any state, not only the first. Other kinds are recognised too: timeouts, replies, faults, the outcomes of a routing slip and composite events of a join.

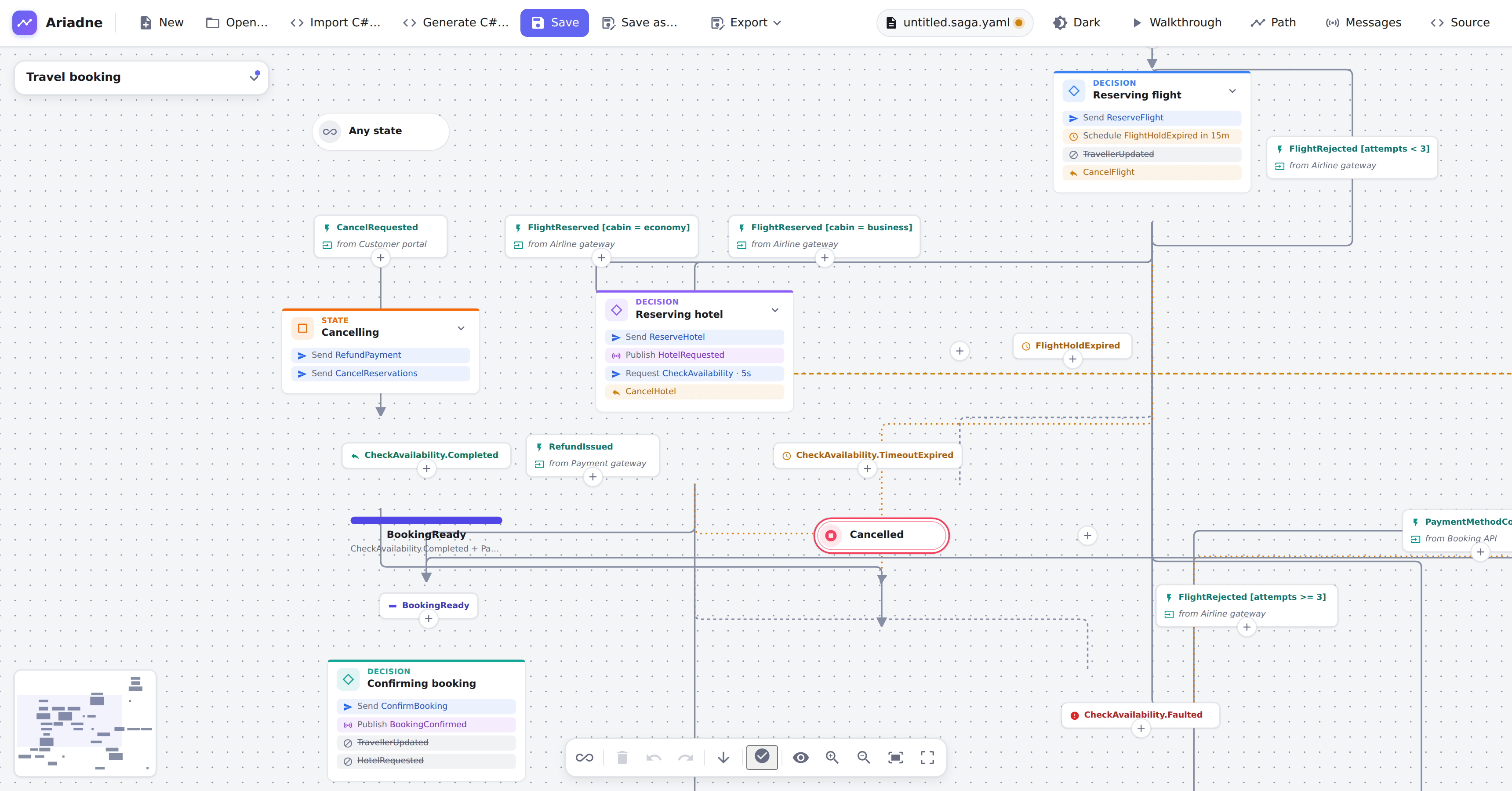

Any state and join

• Any (the button in the toolbar) holds transitions that apply in every state, e.g. OrderCancelled. There is at most one.
• A join waits until the events of all its incoming transitions have arrived, then continues.

Code details

For the C# round trip, the Code section of the saga's details holds the state machine class, namespace, saga instance type and state property; a transition's event can name its message type and correlation. All optional: the generator derives names from the diagram. See Import and generate C#.

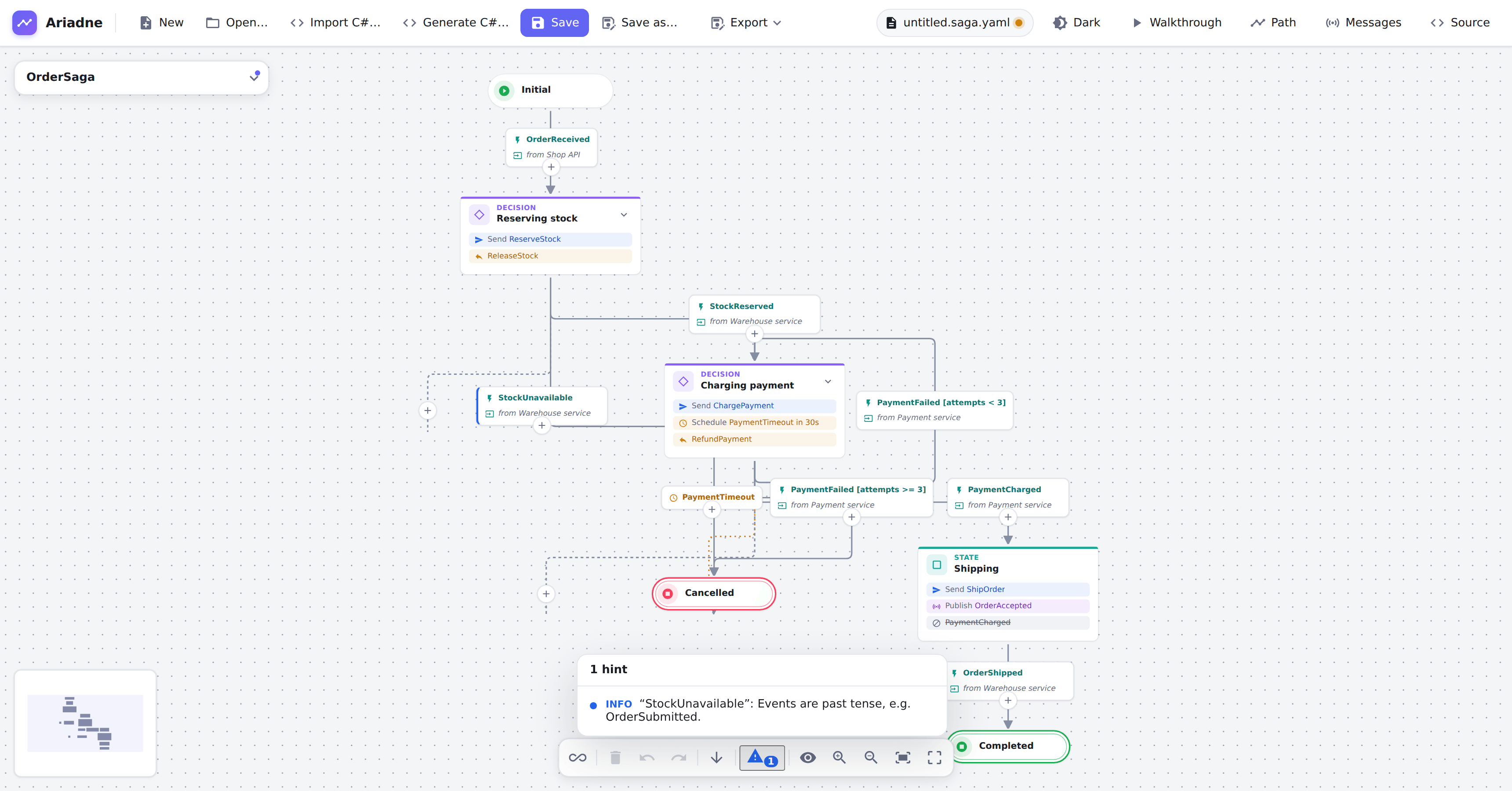

Problems

The Problems menu lists what looks wrong: a state that cannot be reached or has no way to a final state, an event that leaves a state twice without a guard, a transition without an event, an external event without a source. Select an entry to jump to it. ariadne lint reports the same in CI.
