Import and generate C#

Ariadne converts in both directions and can check that the two still agree. Everything runs in your browser (or on your machine, for the command line): source code is never sent anywhere.

Import from C#

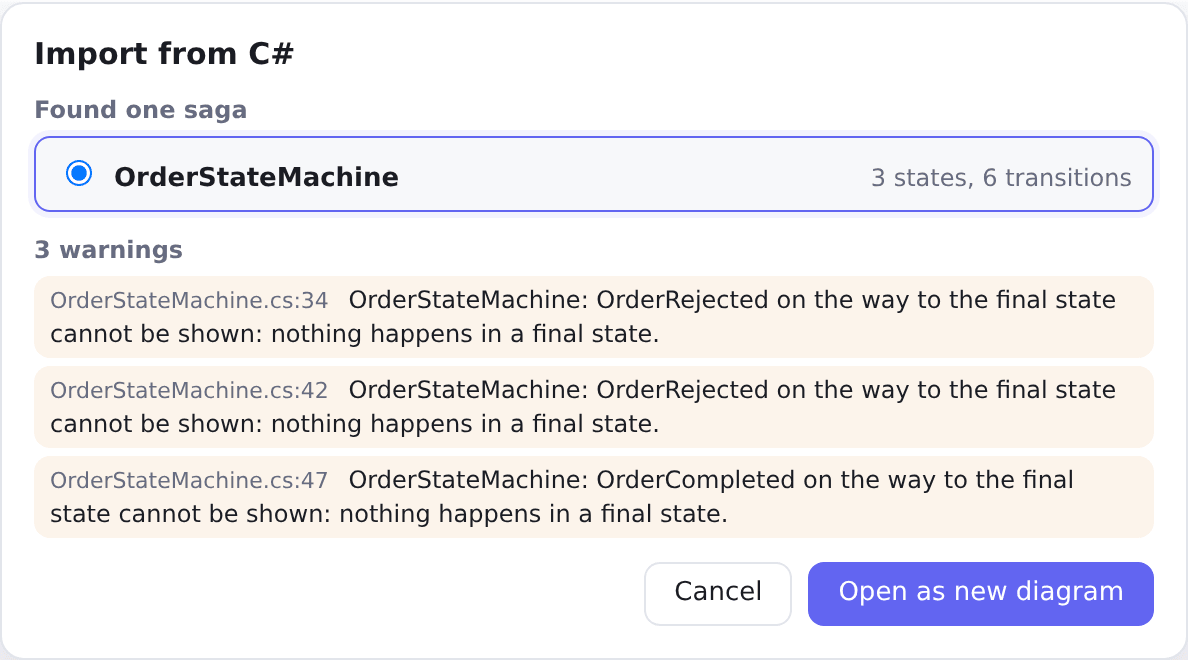

Import C#… takes one or more .cs files, finds the classes derived from MassTransitStateMachine<T> and shows what it found. Pick a saga and choose Open as new diagram.

What is read: Initially, During, DuringAny and WhenEnter; When(Event) with an optional filter (shown as a guard); If and IfElse (a transition for each branch, each with its guard); TransitionTo, Finalize and Ignore; Send and Publish (shown as activities of the target state); Request with its answers Name.Completed, .Faulted and .TimeoutExpired; Schedule and Unschedule with Name.Received; CompositeEvent (a join); a routing slip built with RoutingSlipBuilder in Then/ThenAsync, with Courier's RoutingSlipCompleted and RoutingSlipFaulted shown as Name.Completed and Name.Faulted of the slip the state started (the name is a // Routing slip: Name comment, else the builder's variable; an activity compensates when its line ends in // compensates); helper methods of the same class; partial classes spread over several files; Event(() => E, x => x.CorrelateById(...)).

What is not drawn is listed as a warning with file and line:

• code that runs in Then(...), Catch and the like, except a routing slip;
• Fault, OnUnhandledEvent, Switch, and WhenLeave, WhenEnterAny, WhenLeaveAny, BeforeEnter, AfterLeave and Finally;
• anything sent, published, requested or scheduled on the way into the final state, because nothing happens in a final state;
• transitions into one state that do different things, because the diagram shows what happens on the state;
• a member of a CompositeEvent that moves the saga on instead of staying in its state, and a base class that cannot be resolved.

The diagram is a view of the structure, not of every line of code.

The result opens as a new, unsaved diagram. Import never changes your code.

Generate C#

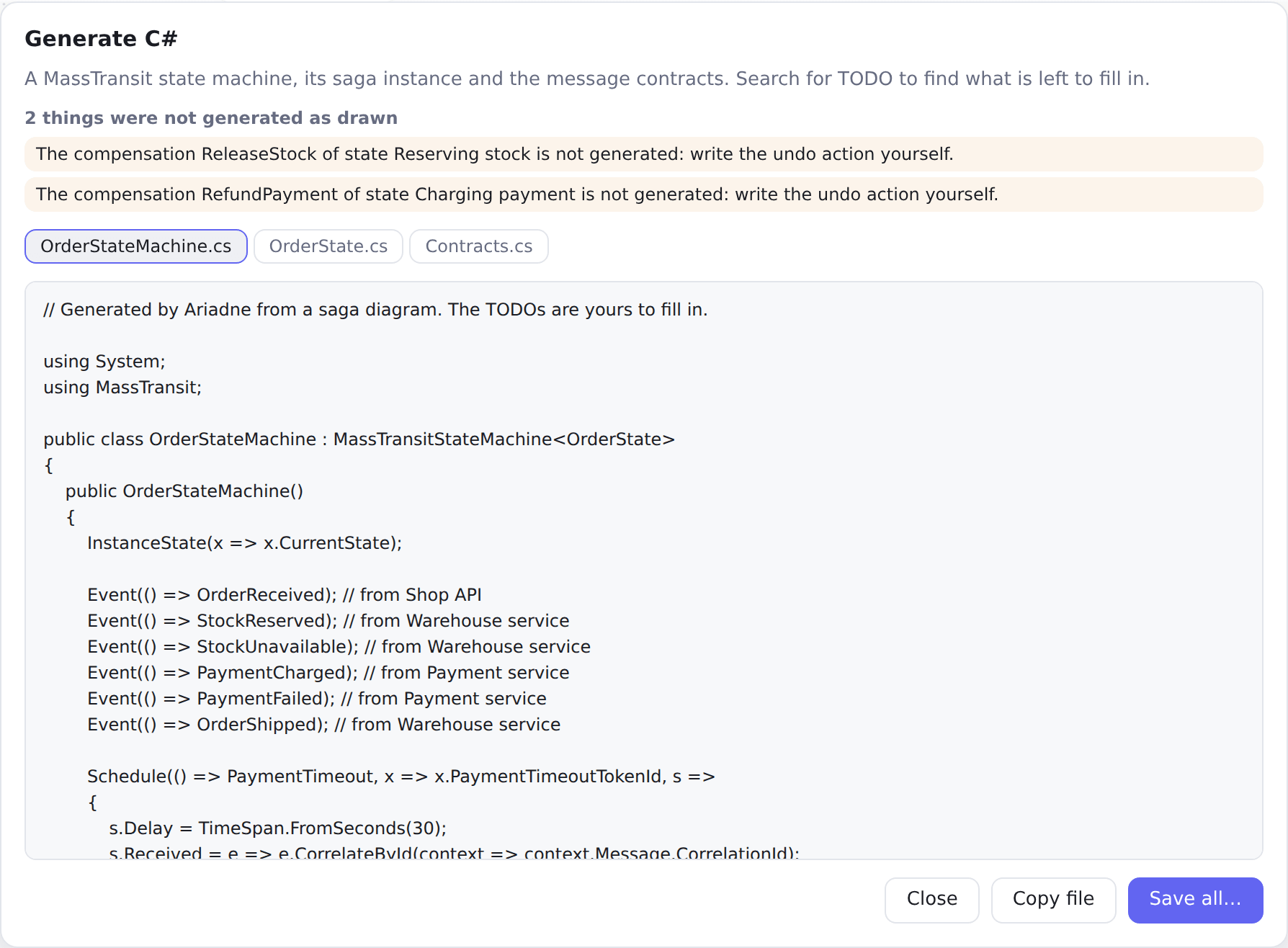

Generate C#… writes a MassTransit state machine, a saga instance and the message contracts. The dialog shows each file; Copy file copies one, Save all… writes them into a folder you choose (or one zip, in browsers without a folder picker).

The generated code is a starting point:

• search for TODO: the properties of the messages, and every guard, are left for you;
• what a diagram cannot say, such as a transition without an event, is not generated and is listed in the dialog;
• C# has no marker for a compensation: a compensation transition is written as an ordinary one, the undo action of a state is not generated, and the dialog says so. Importing the code gives ordinary transitions back;
• a routing slip is built and executed when its state is entered, with the saga's CorrelationId as tracking number, one AddActivity per activity (the queue:<name>_execute addresses are guesses to check) and a // compensates comment where it applies; a state that waits for the outcomes of two slips is not generated;
• names are turned into C# identifiers (Charging payment → ChargingPayment), and a clash gets a number.

Save generated files where you want them; Ariadne never overwrites a project.

In VS Code

The extension does the same next to the code:

• Import: a CodeLens above a MassTransitStateMachine<T> class says Import as saga diagram (also Ariadne: Import Saga from C#…). It writes <Class>.saga.yaml, records the C# file in the diagram's saga.source, and opens it. If the diagram already exists and differs, you see a diff first.
• Generate: Ariadne: Generate C# (a button in the diagram editor's title bar) lists the files; pick the ones to write and compare changed ones first. The folder and namespace come from the diagram's saga details or the ariadne.generate.* settings.
• Drift: when a diagram names its C# file, saving either one compares them. Differences show in the Problems panel on both files, with the quick fixes Update diagram from code and Open diff. ariadne.drift.enabled turns it off.
• Go to code: in the inspector, the button on a state or transition opens the C# at that place. The CodeLens above a class that has a diagram reads Open saga diagram.

Command line

ariadne generate order.saga.yaml -o src/Orders       # diagram -> C#
ariadne import src/Orders/*.cs -o docs               # C# -> diagram
ariadne diff docs/order.saga.yaml src/Orders/*.cs    # exit code 1 when they differ

diff lists the states, transitions, sent and published messages, ignored events, and the message type and correlation of events that exist only on one side. Names are compared as C# identifiers; guards, layout, colours and descriptions are not compared. Put ariadne diff in your CI to notice when the diagram and the code drift apart.

Why it round-trips

Generating C# from a diagram and importing it again gives the same diagram (the tests check this for every sample). A guard is the exception: it is free text in the diagram and a TODO condition in the code.
